S140OD Eccentric Overburden Drilling Equipment |
Overburden Drilling |
|
|

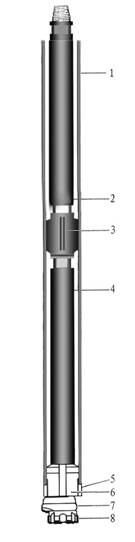

1 |
Casing Tube |
Maximum O.D：171mm
Minimum I.D：155.6mm |
2 |
Drill Pipe |
Connection Thread： |
|
″API Reg |
|
O.D：89mm |
Wrench Flats：65mm |
|
3 |
Guide sleeve |
Effctive length：225mm |
4 |
DTH—Hammer |
SUG55、Cop54、SD5、DHD350、 Mission50 |
5 |

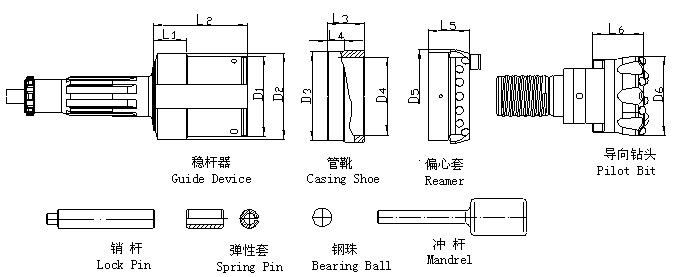

Casing Shoe |
L3=90mm L4=63mm D3=155.3mm D4=140mm |
6 |
Guide Device |
L1=52.8mm L2=155mm D1= 141mm D2=153.6mm |
7 |
Reamer |
D5=40mm L5=70mm
Reaming Diameter：185mm
Reamer has 6×φ14 Buttons |
8 |
Pilot Bit |
D6=141.2mm L6=62mm
Gauge button：8×φ16
Face button ：8×φ14 |
Technical Data |
|
