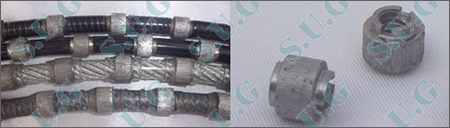

DIAMOND WIRE-SAWS FOR GRANITE QUARRIES

Diamond wire-saws are widely used for granite quarries. The main specialties of
diamond wire-saws are :

¡¤ To be able to used for great area granite quarries cutting;

¡¤ To get high percentage of forming dimension stone;

¡¤ High manufacture efficiency;

¡¤ Safety, low- noise, no- dust and friendly surroundings;

¡¤ Low cutting cost.

Specificationand performancepartmeters of diamond wire ¨Csaws

Specification ( mm)

Beads/m

Reinforcement

Cutting material

Liner speed( m2/h)

Cutting speed
( m2/h)

Wire life ( m2/m)

11.5

40,39

Plasticized and /Or with spring rubber and/or With spring

Low rigidity

Granite

26-30

4-7

11-14

Mid rigidity
Granite

22-26

2-4

8-11

HARD Granite

18-22

1-3

6-9

Abrasive
Granite



26-30

4-7

10-13

Other specification are available upon requirements

Specificationandtechnicalpartmeters of diamond beadswire ¨Csaws

Specification( mm)

Outer Diameter( mm)

Height of work

Layer( mm)

Length(£í£í)

Manufacure tech

11.5

11.5

6

10

Sintered

Other specification are available upon requirements
