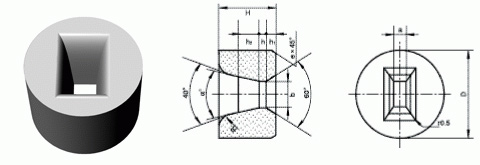

| Wearable parts-->> Drawing Dies HC41 |
|
|
Unit：mm |
Type |
Dimension |
D |
H |
a |
b |
h |
HC41- |
30.00 |
21.00 |
4.70~6.70 |
6.70 |
2.00 |
35.00 |
25.00 |
5.70~7.70 |
7.70~9.70 |
3.00 |
45.00 |
|
7.70~9.70 |
11.70 |
3.50 |
50.00 |
28.00 |
6.70~15.70 |
13.70~17.60 |
4.00 |
60.00 |
30.00 |
7.70~14.70 |
19.60~23.60 |
5.00 |
|
|
|
|
