| Cutting Tools--->> Mechanically Clamped Inserts
HCJ2 |
|

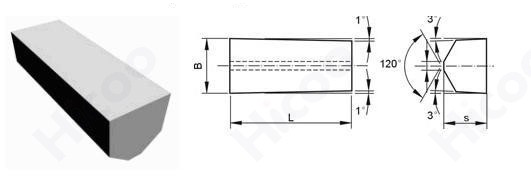

| For making mechanically clamped cutoff tools and grooving tools |
|
| |
Type |
Dimension(mm) |
Approx unit weight(g) |
B |
s |
L |
YG6 |
YG8 |
YT5 |
YT14 |
HCJ200 |
3.5 |
4.0 |
13.0 |
2.3 |
2.2 |
2.0 |
1.7 |
HCJ201 |
4.5 |
4.0 |
15.0 |
3.5 |
3.4 |
3.0 |
2.6 |
HCJ203 |
5.5 |
5.0 |
18.0 |
6.3 |
6.1 |
5.4 |
4.8 |
HCJ205 |
8.0 |
7.0 |
22.0 |
14.8 |
14.6 |
13.3 |
11.8 |
HCJ207 |
10.0 |
8.0 |
25.0 |
23.8 |
23.6 |
21.1 |
18.7 |
HCJ209 |
12.5 |
10.0 |
28.0 |
42.0 |
41.0 |
36.5 |
32.4 |
HCJ211 |
16.5 |
12.0 |
30.0 |
70.5 |
69.0 |
60.9 |
54.1 |
|
|
|
|
