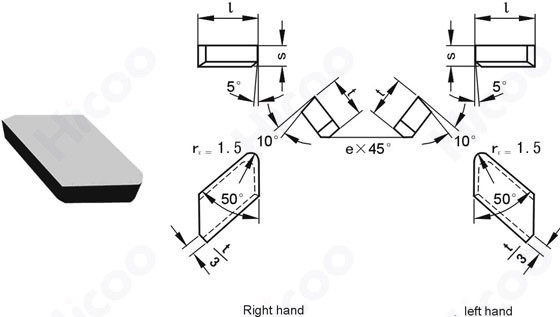

| Cutting Tools--->> Brazed Tips HCB1 |
|
|
|
Type |
Dimension(mm) |
Approx unit weight(g) |
Right |
Left |
l |
t |
s |
e |
YG6 |
YG8 |
YT5 |
YT14 |
|
HCB108 |
/ |
8.0 |
6.0 |
3.0 |
/ |
3.5 |
3.0 |
2.8 |
2.5 |
HCB112 |
HCB112Z |
12.0 |
8.0 |
4.0 |
1.0 |
5.4 |
5.3 |
4.7 |
4.2 |
HCB116 |
HCB116Z |
16.0 |
10.0 |
5.0 |
1.0 |
12.2 |
12.0 |
11.4 |
9.3 |
HCB120 |
HCB120Z |
20.0 |
14.0 |
5.0 |
1.0 |
25.8 |
25.5 |
22.1 |
19.6 |
HCB120A |
HCB120AZ |
20.0 |
16.0 |
7.0 |
1.5 |
30.9 |
30.4 |
26.6 |
23.6 |
HCB125 |
HCB125Z |
25.0 |
14.0 |
5.0 |
1.5 |
32.0 |
31.5 |
28.2 |
25.0 |
HCB125A |
HCB125AZ |
25.0 |
18.0 |
8.0 |
1.5 |
52.5 |
51.8 |
45.1 |
40.0 |
HCB130 |
HCB130Z |
30.0 |
20.0 |
8.0 |
1.5 |
76.2 |
75.0 |
65.5 |
58.2 |
|
|
|
|
