| Cutting Tools--->> Brazed Tips HCF2 |
|
|
|
Type |

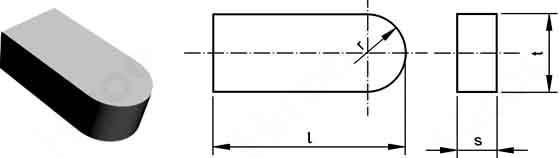

Dimension(mm) |
Approx unit weight(g) |
l |
t |
s |
r |
YG6 |
YG8 |
YT5 |
YT14 |
HCF216 |
16.0 |
8.0 |
5.0 |
4.0 |
9.3 |
9.2 |
8.0 |
7.1 |
HCF216A |
16.0 |
10.0 |
5.0 |
5.0 |
11.0 |
10.8 |
9.9 |
8.8 |
HCF216B |
16.0 |
12.0 |
6.0 |
6.0 |
15.7 |
15.5 |
13.6 |
12.0 |
HCF218 |
18.0 |
2.5 |
2.5 |
1.3 |
1.8 |
1.7 |
1.3 |
1.2 |
HCF220 |
20.0 |
3.0 |
3.0 |
1.5 |
2.6 |
2.5 |
2.3 |
2.1 |
HCF225 |
25.0 |
5.0 |
4.0 |
2.5 |
7.4 |
7.3 |
6.2 |
5.7 |
HCF230 |
30.0 |
6.0 |
5.0 |
3.0 |
13.5 |
13.3 |
10.8 |
10.0 |
HCF230A |
30.0 |
8.0 |
5.0 |
4.0 |
17.4 |
17.2 |
16.8 |
15.4 |
HCF230B |
30.0 |
10.0 |
5.0 |
5.0 |
22.0 |
21.8 |
24.4 |
22.0 |
HCF230C |
30.0 |
12.0 |
6.0 |
6.0 |
31.4 |
31.0 |
39.3 |
36.7 |
|
|
|
|
