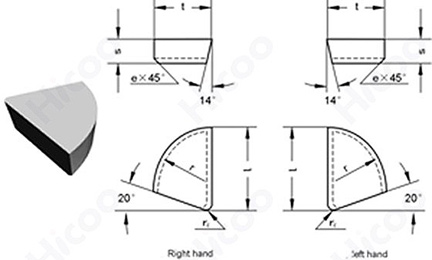

| Cutting Tools--->> Brazed Tips HCA2 |
|
|
|
Type |
Dimension(mm) |
Approx unit weight(g) |
Right |
Left |
l |
t |
s |
r |
rε |
e |
YG6 |
YG8 |
YT5 |
YT14 |
|
HCA208 |
/ |
8.0 |
7.0 |
2.5 |
7.0 |
0.5 |
/ |
1.4 |
1.4 |
1.3 |
1.3 |
HCA210 |
/ |
10.0 |
8.0 |
3.0 |
8.0 |
1.0 |
/ |
2.8 |
2.8 |
2.5 |
2.2 |
HCA212 |
HCA212Z |
12.0 |
10.0 |
4.5 |
10.0 |
1.0 |
0.8 |
5.4 |
5.3 |
4.5 |
4.2 |
HCA216 |
HCA216Z |
16.0 |
14.0 |
6.0 |
14.0 |
1.0 |
0.8 |
13.0 |
12.8 |
11.3 |
10.5 |
HCA220 |
HCA220Z |
20.0 |
18.0 |
7.0 |
18.0 |
1.0 |
0.8 |
23.7 |
23.3 |
20.8 |
18.9 |
HCA225 |
HCA225Z |
25.0 |
20.0 |
8.0 |
20.0 |
1.0 |
0.8 |
39.9 |
39.2 |
34.7 |
32.6 |
|
|
|
|
