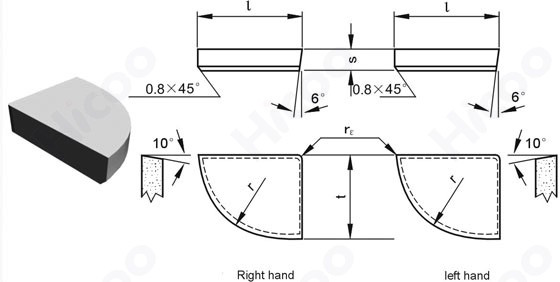

| Cutting Tools--->> Brazed Tips HCD1 |
|
|
|
Type |
Dimension(mm) |
Approx unit weight(g) |
Right |
Left |
l |
t |
s |
r |
rε |
YG6 |
YG8 |
YT5 |
YT14 |
HCD110 |
/ |
10.0 |
8.0 |
2.5 |
8.0 |
0.5 |
3.2 |
3.1 |
2.6 |
2.4 |
HCD112 |
/ |
12.0 |
10.0 |
3.0 |
10.0 |
0.5 |
4.8 |
4.7 |
3.9 |
3.6 |
HCD115 |
HCD115Z |
15.0 |
12.0 |
3.5 |
12.5 |
0.5 |
8.4 |
8.2 |
6.7 |
6.2 |
HCD120 |
HCD120Z |
20.0 |
16.0 |
4.0 |
16.0 |
1.0 |
16.8 |
16.5 |
14.2 |
13.2 |
HCD125 |
HCD125Z |
25.0 |
20.0 |
5.0 |
20.0 |
1.0 |
29.1 |
28.5 |
25.2 |
22.5 |
HCD130 |
HCD130Z |
30.0 |
20.0 |
6.0 |
20.0 |
1.0 |
43.2 |
42.5 |
36.8 |
34.2 |
|
|
|
|
