Job
Photos |
||
| Reinforced Concrete Foundation Demolition |
 |

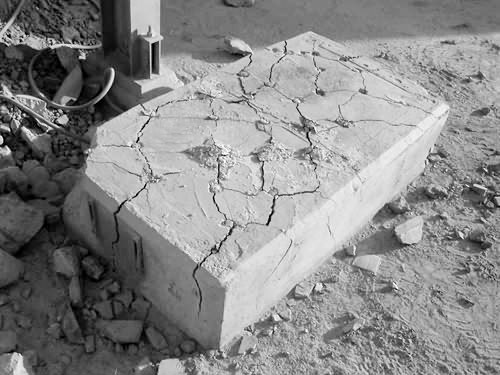

| This base was 4' wide x 7'3" long x 2' high. Reinforced with rebar.Look at the great results of Crack Dexpan. |
 |

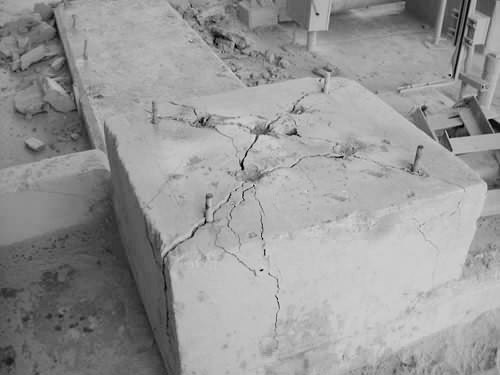

| This motor base was 3' x 3' x 3', with a few holes and Crack Dexpan. It came apart in short order. |
 |

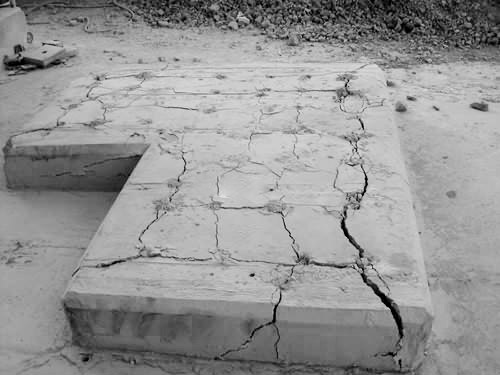

| This base is 7'3" on the long sides and 4'7" wide and 10" high. It had 3 mats of #6 rebar with dowels every 12" around the perimeter. Take note of the heaving in the center of the base. Approximately 1 1/2 cases of Crack Dexpan were used. The holes were drilled in 12" deep. |
 |
 |

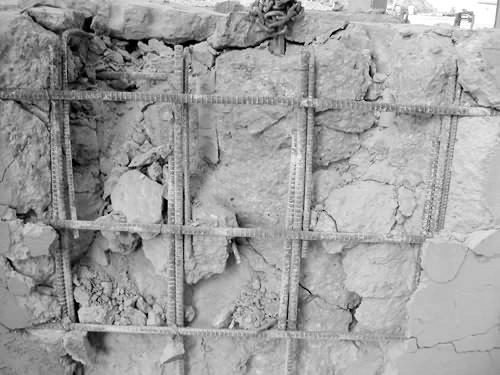

| This is a side view showing the first of 4 layers of rebar in this base. These are #6 rebar (3/4" diameter). The dowels coming out of the footing are #8 rebar (1" diameter). They are not shown in this photo. |
 |
